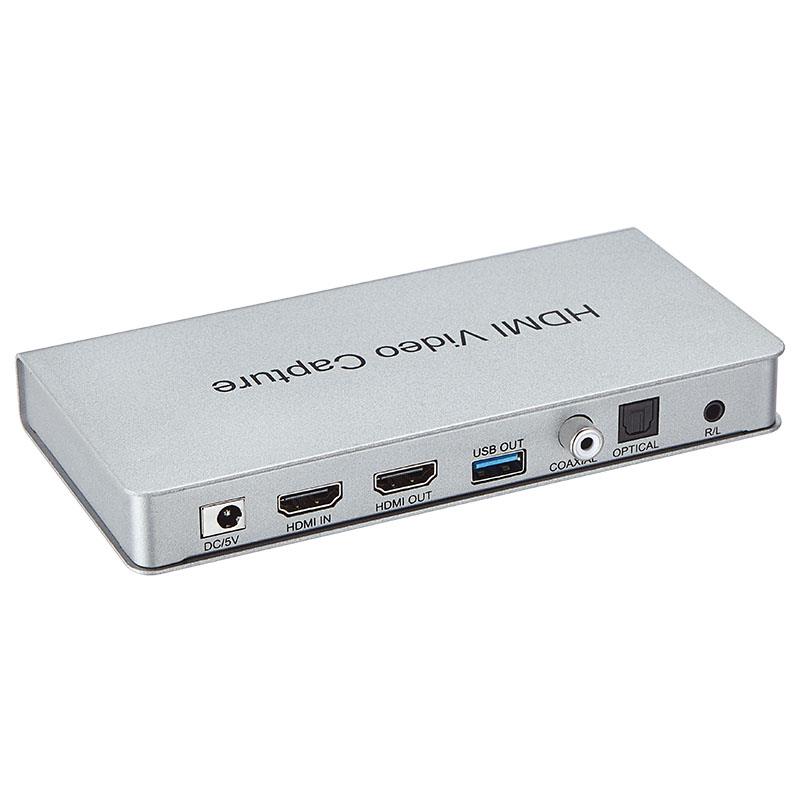

HDMI TO HDMI+USB3.0 Video capture
Model No.: HDVC1
The USB 3.0 HDMI video capture can capture the HD video and audio signal. It can display the HD signal to the displayer or projector.It can support USB storage by computer at the same time.
The USB 3.0 HDMI video capture can also separate the HD video and audio signal. The stripped coaxial or optical fiber digital audio can connect with an amplifier. The stripped analog audio can connect to a headphone. The max resolution can be up to 1080P/60HZ.
Features
l Support HDMI1.4b
l Support max resolution 1080P/60Hz
l Support the max baud rate of 1.49G and TMDS clock can be up to 148.5 MHz
l Support 8 bit deep color
l Support AWG26 HDMI standard cable: input up to 8 meters,output up to 8 meters. (1080P and below resolution)
l Support USB 3.0 standard cable, output up to 1.5m
l Support most capture software, such as VLC、OBS 、Amcap
l Conform to USB video 1.5 and 1.0 standard
l 5V/1.5A power adapter
